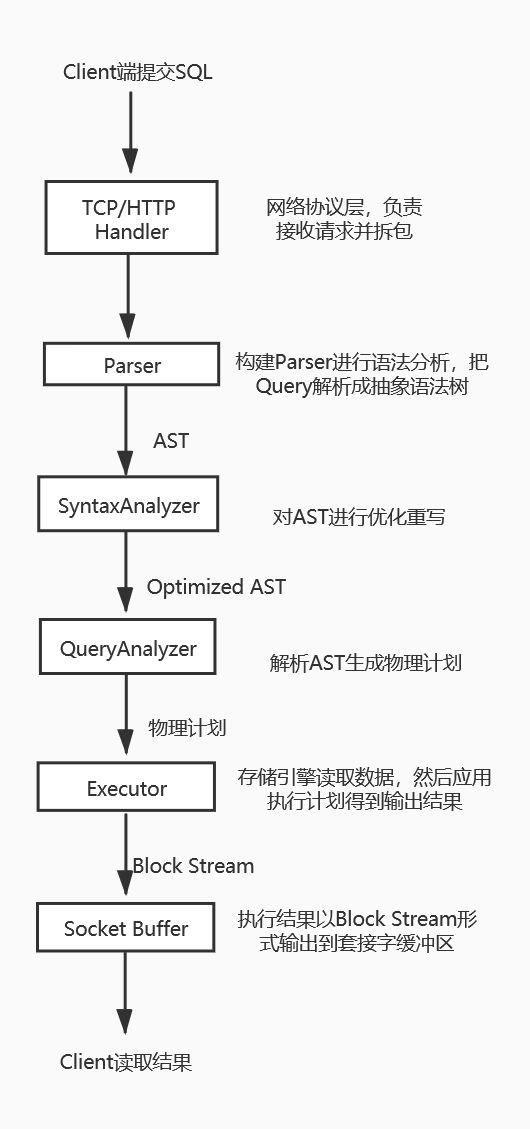

ClickHouse 源码阅读 —— 详解查询SQL语句执行过程。

int Server::main()
{
    // 初始化上下文
    global_context = std::make_unique<Context>(Context::createGlobal());
    global_context->setApplicationType(Context::ApplicationType::SERVER);

    // zk初始化
    zkutil::ZooKeeperNodeCache main_config_zk_node_cache([&] { return global_context->getZooKeeper(); });

    //其他config的初始化
    //...

    //绑定端口,对外提供服务
    auto address = make_socket_address(host, port);
    socket.bind(address, /* reuseAddress = */ true);

    //根据网络协议建立不同的server类型
    //现在支持的server类型有： HTTP,HTTPS,TCP,Interserver,mysql
    //以TCP版本为例:
    create_server("tcp_port", [&](UInt16 port)
    {
        Poco::Net::ServerSocket socket;
        auto address = socket_bind_listen(socket, listen_host, port);
        servers.emplace_back(std::make_unique<Poco::Net::TCPServer>(
            new TCPHandlerFactory(*this),
            server_pool,
            socket,
            new Poco::Net::TCPServerParams));
     });

    //启动server
    for (auto & server : servers)
            server->start();

}

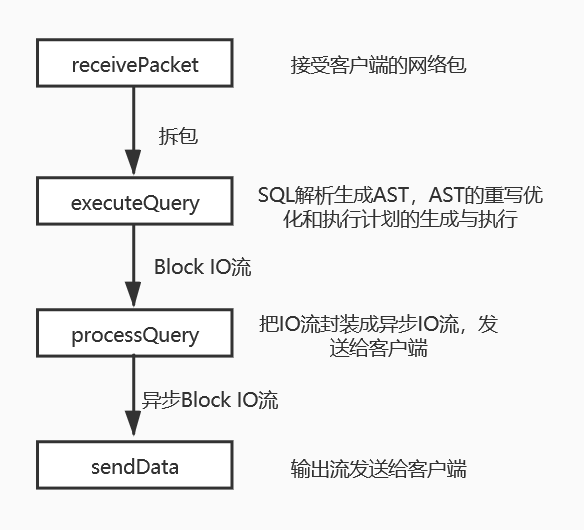

void TCPHandler::runImpl()
{
    //实例化套接字对应的输入和输出流缓冲区
    in = std::make_shared<ReadBufferFromPocoSocket>(socket());
    out = std::make_shared<WriteBufferFromPocoSocket>(socket());

    while (1){
        // 接收请求报文
        receivePacket();

        // 执行Query
        state.io = executeQuery(state.query, *query_context, false, state.stage, may_have_embedded_data);

        //根据Query种类来处理不同的Query
        //处理insert Query
        processInsertQuery();
        //并发处理普通Query
        processOrdinaryQueryWithProcessors();
        //单线程处理普通Query
        processOrdinaryQuery();
    }

}

static std::tuple<ASTPtr, BlockIO> executeQueryImpl()
{
    //构造Parser
    ParserQuery parser(end, settings.enable_debug_queries);
    ASTPtr ast;

    //把Query转化为抽象语法树
    ast = parseQuery(parser, begin, end, "", max_query_size);

    //生成interpreter实例
    auto interpreter = InterpreterFactory::get(ast, context, stage);

    // interpreter解析AST,结果是BlockIO
    res = interpreter->execute();

    //返回结果是抽象语法树和解析后的结果组成的二元组
    return std::make_tuple(ast, res);
}

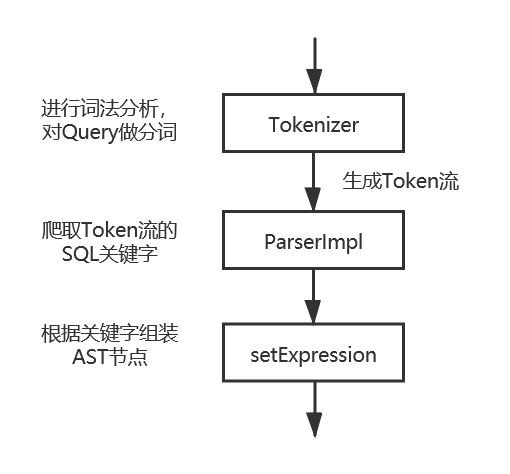

ASTPtr tryParseQuery()
{
    //Token为lexer词法分析后的基本单位,词法分析后生成的是Token流
    Tokens tokens(pos, end, max_query_size);
    IParser::Pos token_iterator(tokens);
    ASTPtr res;
    //Token流经过语法分析生成AST抽象语法树
    bool parse_res = parser.parse(token_iterator, res, expected);
    return res;

}

bool ParserQuery::parseImpl(Pos & pos, ASTPtr & node, Expected & expected)
{
    ParserQueryWithOutput query_with_output_p(enable_explain);
    ParserInsertQuery insert_p(end);
    ParserUseQuery use_p;
    ParserSetQuery set_p;
    ParserSystemQuery system_p;

    bool res = query_with_output_p.parse(pos, node, expected)
        || insert_p.parse(pos, node, expected)
        || use_p.parse(pos, node, expected)
        || set_p.parse(pos, node, expected)
        || system_p.parse(pos, node, expected);

    return res;
}

bool ParserSelectQuery::parseImpl(Pos & pos, ASTPtr & node, Expected & expected)
{
    //创建AST树节点
    auto select_query = std::make_shared<ASTSelectQuery>();
    node = select_query;

    //select语句中会出现的关键词
    ParserKeyword s_select("SELECT");
    ParserKeyword s_distinct("DISTINCT");
    ParserKeyword s_from("FROM");
    ParserKeyword s_prewhere("PREWHERE");
    ParserKeyword s_where("WHERE");
    ParserKeyword s_group_by("GROUP BY");
    ParserKeyword s_with("WITH");
    ParserKeyword s_totals("TOTALS");
    ParserKeyword s_having("HAVING");
    ParserKeyword s_order_by("ORDER BY");
    ParserKeyword s_limit("LIMIT");
    ParserKeyword s_settings("SETTINGS");
    ParserKeyword s_by("BY");
    ParserKeyword s_rollup("ROLLUP");
    ParserKeyword s_cube("CUBE");
    ParserKeyword s_top("TOP");
    ParserKeyword s_with_ties("WITH TIES");
    ParserKeyword s_offset("OFFSET");

    //...
    //依次对Token流爬取上述关键字
    ParserTablesInSelectQuery().parse(pos, tables, expected)

    //根据语法分析结果设置AST的Expression属性,可以理解为如果SQL存在该关键字,这个关键字都会转化为AST上的一个节点
    select_query->setExpression(ASTSelectQuery::Expression::WITH, std::move(with_expression_list));
    select_query->setExpression(ASTSelectQuery::Expression::SELECT, std::move(select_expression_list));
    select_query->setExpression(ASTSelectQuery::Expression::TABLES, std::move(tables));
    select_query->setExpression(ASTSelectQuery::Expression::PREWHERE, std::move(prewhere_expression));
    select_query->setExpression(ASTSelectQuery::Expression::WHERE, std::move(where_expression));
    select_query->setExpression(ASTSelectQuery::Expression::GROUP_BY, std::move(group_expression_list));
    select_query->setExpression(ASTSelectQuery::Expression::HAVING, std::move(having_expression));
    select_query->setExpression(ASTSelectQuery::Expression::ORDER_BY, std::move(order_expression_list));
    select_query->setExpression(ASTSelectQuery::Expression::LIMIT_BY_OFFSET, std::move(limit_by_offset));
    select_query->setExpression(ASTSelectQuery::Expression::LIMIT_BY_LENGTH, std::move(limit_by_length));
    select_query->setExpression(ASTSelectQuery::Expression::LIMIT_BY, std::move(limit_by_expression_list));
    select_query->setExpression(ASTSelectQuery::Expression::LIMIT_OFFSET, std::move(limit_offset));
    select_query->setExpression(ASTSelectQuery::Expression::LIMIT_LENGTH, std::move(limit_length));
    select_query->setExpression(ASTSelectQuery::Expression::SETTINGS, std::move(settings));

}

std::unique_ptr<IInterpreter> InterpreterFactory::get(ASTPtr & query, Context & context, QueryProcessingStage::Enum stage)
{
    //举个例子,如果该AST是由select语句转化过来,
    if (query->as<ASTSelectQuery>())
    {
        /// This is internal part of ASTSelectWithUnionQuery.
        /// Even if there is SELECT without union, it is represented by ASTSelectWithUnionQuery with single ASTSelectQuery as a child.
        return std::make_unique<InterpreterSelectQuery>(query, context, SelectQueryOptions(stage));
    }
}

InterpreterSelectQuery::InterpreterSelectQuery()
 {
     //获取AST
    auto & query = getSelectQuery();

    //对AST做进一步语法分析，对语法树做优化重写
    syntax_analyzer_result = SyntaxAnalyzer(context, options).analyze(
        query_ptr, source_header.getNamesAndTypesList(), required_result_column_names, storage, NamesAndTypesList());

    //每一种Query都会对应一个特有的表达式分析器,用于爬取AST生成执行计划(操作链)
    query_analyzer = std::make_unique<SelectQueryExpressionAnalyzer>(
        query_ptr, syntax_analyzer_result, context,
        NameSet(required_result_column_names.begin(), required_result_column_names.end()),
        options.subquery_depth, !options.only_analyze);
 }

SyntaxAnalyzerResultPtr SyntaxAnalyzer::analyze()
{
     // 剔除冗余列
     removeDuplicateColumns(result.source_columns);

     // 根据settings中enable_optimize_predicate_expression配置判断是否进行谓词下移
     replaceJoinedTable(node);

     // 根据settings中distributed_product_mode配置重写IN 与 JOIN 表达式
     InJoinSubqueriesPreprocessor(context).visit(query);

     // 优化Query内部的布尔表达式
     LogicalExpressionsOptimizer().perform();

     // 创建一个从别名到AST节点的映射字典
     QueryAliasesVisitor(query_aliases_data, log.stream()).visit(query);

     // 公共子表达式的消除
     QueryNormalizer(normalizer_data).visit(query);

     // 消除select从句后的冗余列
     removeUnneededColumnsFromSelectClause(select_query, required_result_columns, remove_duplicates);

     // 执行标量子查询，并且用常量替代标量子查询结果
     executeScalarSubqueries(query, context, subquery_depth);

     // 如果是select语句还会做下列优化:

     // 谓词下移优化
     PredicateExpressionsOptimizer(select_query, settings, context).optimize();

     /// GROUP BY 从句的优化
     optimizeGroupBy(select_query, source_columns_set, context);

     /// ORDER BY 从句的冗余项剔除
     optimizeOrderBy(select_query);

     /// LIMIT BY 从句的冗余列剔除
     optimizeLimitBy(select_query);

     /// USING语句的冗余列剔除
     optimizeUsing(select_query);

}

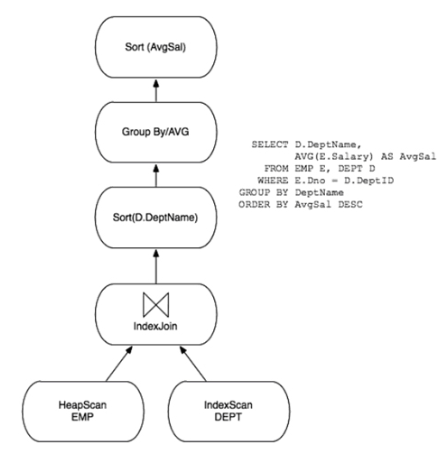

ExpressionActionsChain chain;
analyzer.appendWhere(chain);
chain.addStep();
analyzer.appendSelect(chain);
analyzer.appendOrderBy(chain);
chain.finalize();

void InterpreterSelectQuery::executeImpl(TPipeline & pipeline, const BlockInputStreamPtr & prepared_input)
{
     // 对应Query的AST
     auto & query = getSelectQuery();

     AnalysisResult expressions;
     // 物理计划，判断表达式是否有where,aggregate,having,order_by,litmit_by等字段
     expressions = analyzeExpressions(
                getSelectQuery(),
                *query_analyzer,
                QueryProcessingStage::FetchColumns,
                options.to_stage,
                context,
                storage,
                true,
                filter_info);

     // 从Storage读取数据
     executeFetchColumns(from_stage, pipeline, sorting_info, expressions.prewhere_info, expressions.columns_to_remove_after_prewhere);

     // eg:根据SQL的关键字在BlockStream流水线中执行相应的操作, 如where,aggregate,distinct都分别由一个函数负责执行
     executeWhere(pipeline, expressions.before_where, expressions.remove_where_filter);

     executeAggregation(pipeline, expressions.before_aggregation, aggregate_overflow_row, aggregate_final);

     executeDistinct(pipeline, true, expressions.selected_columns);

}
