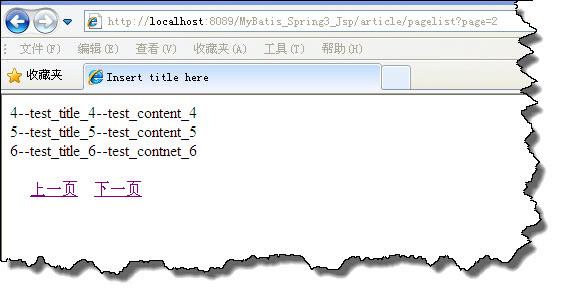

上一篇文章里已经讲到了 Mybatis与 Spring MVC 的集成，并且做了一个列表展示，显示出所有 article 列表，但没有用到分页，在实际的项目中，分页是肯定需要的。而且是物理分页，不是内存分页。对于物理分页方案，不同的数据库，有不同的实现方法,对于 Mysql 来说 就是利用 limit offset,pagesize 方式来实现的。oracle 是通过 rownum 来实现的，如果你熟悉相关数据库的操作，是一样的很好扩展，本文以 Mysql 为例子来讲述。先看一下效果图(源代码在文章最后提供下载):
实现 Mybatis 物理分页，一个最简单的方式是，是在你的 mapper 的 SQL 语句中直接写类似如下方式 :
<select id="getUserArticles" parameterType="Your_params" resultMap="resultUserArticleList">
select user.id,user.userName,user.userAddress,article.id aid,article.title,article.content from user,article
where user.id=article.userid and user.id=#{id} limit #{offset},#{pagesize}
</select>请注意这里的 parameterType 是你传入的参数类，或者map ，里面包含了 offset,pagesize ,和其他你需要的参数，用这种方式，肯定可以实现分页。这是简单的一种方式。但更通用的一种方式是用 mybatis 插件的方式. 参考了网上的很多资料 ，mybatis plugin 方面的资料。写自己的插件。
package com.nowjava.util;
import java.lang.reflect.Field;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.List;
import java.util.Map;
import java.util.Properties;
import javax.xml.bind.PropertyException;
import org.apache.ibatis.builder.xml.dynamic.ForEachSqlNode;
import org.apache.ibatis.executor.ErrorContext;
import org.apache.ibatis.executor.Executor;
import org.apache.ibatis.executor.ExecutorException;
import org.apache.ibatis.executor.statement.BaseStatementHandler;
import org.apache.ibatis.executor.statement.RoutingStatementHandler;
import org.apache.ibatis.executor.statement.StatementHandler;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.mapping.MappedStatement;
import org.apache.ibatis.mapping.ParameterMapping;
import org.apache.ibatis.mapping.ParameterMode;
import org.apache.ibatis.plugin.Interceptor;
import org.apache.ibatis.plugin.Intercepts;
import org.apache.ibatis.plugin.Invocation;
import org.apache.ibatis.plugin.Plugin;
import org.apache.ibatis.plugin.Signature;
import org.apache.ibatis.reflection.MetaObject;
import org.apache.ibatis.reflection.property.PropertyTokenizer;
import org.apache.ibatis.session.Configuration;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;
import org.apache.ibatis.type.TypeHandler;
import org.apache.ibatis.type.TypeHandlerRegistry;
@Intercepts({ @Signature(type = StatementHandler.class, method = "prepare", args = { Connection.class }) })
public class PagePlugin implements Interceptor {
private static String dialect = "";
private static String pageSqlId = "";
@SuppressWarnings("unchecked")
public Object intercept(Invocation ivk) throws Throwable {
if (ivk.getTarget() instanceof RoutingStatementHandler) {
RoutingStatementHandler statementHandler = (RoutingStatementHandler) ivk
.getTarget();
BaseStatementHandler delegate = (BaseStatementHandler) ReflectHelper
.getValueByFieldName(statementHandler, "delegate");
MappedStatement mappedStatement = (MappedStatement) ReflectHelper
.getValueByFieldName(delegate, "mappedStatement");
if (mappedStatement.getId().matches(pageSqlId)) {
BoundSql boundSql = delegate.getBoundSql();
Object parameterObject = boundSql.getParameterObject();
if (parameterObject == null) {
throw new NullPointerException("parameterObject error");
} else {
Connection connection = (Connection) ivk.getArgs()[0];
String sql = boundSql.getSql();
String countSql = "select count(0) from (" + sql + ") myCount";
System.out.println("总数sql 语句:"+countSql);
PreparedStatement countStmt = connection
.prepareStatement(countSql);
BoundSql countBS = new BoundSql(
mappedStatement.getConfiguration(), countSql,
boundSql.getParameterMappings(), parameterObject);
setParameters(countStmt, mappedStatement, countBS,
parameterObject);
ResultSet rs = countStmt.executeQuery();
int count = 0;
if (rs.next()) {
count = rs.getInt(1);
}
rs.close();
countStmt.close();
PageInfo page = null;
if (parameterObject instanceof PageInfo) {
page = (PageInfo) parameterObject;
page.setTotalResult(count);
} else if(parameterObject instanceof Map){
Map<String, Object> map = (Map<String, Object>)parameterObject;
page = (PageInfo)map.get("page");
if(page == null)
page = new PageInfo();
page.setTotalResult(count);
}else {
Field pageField = ReflectHelper.getFieldByFieldName(
parameterObject, "page");
if (pageField != null) {
page = (PageInfo) ReflectHelper.getValueByFieldName(
parameterObject, "page");
if (page == null)
page = new PageInfo();
page.setTotalResult(count);
ReflectHelper.setValueByFieldName(parameterObject,
"page", page);
} else {
throw new NoSuchFieldException(parameterObject
.getClass().getName());
}
}
String pageSql = generatePageSql(sql, page);
System.out.println("page sql:"+pageSql);
ReflectHelper.setValueByFieldName(boundSql, "sql", pageSql);
}
}
}
return ivk.proceed();
}
private void setParameters(PreparedStatement ps,
MappedStatement mappedStatement, BoundSql boundSql,
Object parameterObject) throws SQLException {
ErrorContext.instance().activity("setting parameters")
.object(mappedStatement.getParameterMap().getId());
List<ParameterMapping> parameterMappings = boundSql
.getParameterMappings();
if (parameterMappings != null) {
Configuration configuration = mappedStatement.getConfiguration();
TypeHandlerRegistry typeHandlerRegistry = configuration
.getTypeHandlerRegistry();
MetaObject metaObject = parameterObject == null ? null
: configuration.newMetaObject(parameterObject);
for (int i = 0; i < parameterMappings.size(); i++) {
ParameterMapping parameterMapping = parameterMappings.get(i);
if (parameterMapping.getMode() != ParameterMode.OUT) {
Object value;
String propertyName = parameterMapping.getProperty();
PropertyTokenizer prop = new PropertyTokenizer(propertyName);
if (parameterObject == null) {
value = null;
} else if (typeHandlerRegistry
.hasTypeHandler(parameterObject.getClass())) {
value = parameterObject;
} else if (boundSql.hasAdditionalParameter(propertyName)) {
value = boundSql.getAdditionalParameter(propertyName);
} else if (propertyName
.startsWith(ForEachSqlNode.ITEM_PREFIX)
&& boundSql.hasAdditionalParameter(prop.getName())) {
value = boundSql.getAdditionalParameter(prop.getName());
if (value != null) {
value = configuration.newMetaObject(value)
.getValue(
propertyName.substring(prop
.getName().length()));
}
} else {
value = metaObject == null ? null : metaObject
.getValue(propertyName);
}
TypeHandler typeHandler = parameterMapping.getTypeHandler();
if (typeHandler == null) {
throw new ExecutorException(
"There was no TypeHandler found for parameter "
+ propertyName + " of statement "
+ mappedStatement.getId());
}
typeHandler.setParameter(ps, i + 1, value,
parameterMapping.getJdbcType());
}
}
}
}
private String generatePageSql(String sql, PageInfo page) {
if (page != null && (dialect !=null || !dialect.equals(""))) {
StringBuffer pageSql = new StringBuffer();
if ("mysql".equals(dialect)) {
pageSql.append(sql);
pageSql.append(" limit " + page.getCurrentResult() + ","
+ page.getShowCount());
} else if ("oracle".equals(dialect)) {
pageSql.append("select * from (select tmp_tb.*,ROWNUM row_id from (");
pageSql.append(sql);
pageSql.append(") tmp_tb where ROWNUM<=");
pageSql.append(page.getCurrentResult() + page.getShowCount());
pageSql.append(") where row_id>");
pageSql.append(page.getCurrentResult());
}
return pageSql.toString();
} else {
return sql;
}
}
public Object plugin(Object arg0) {
// TODO Auto-generated method stub
return Plugin.wrap(arg0, this);
}
public void setProperties(Properties p) {
dialect = p.getProperty("dialect");
if (dialect ==null || dialect.equals("")) {
try {
throw new PropertyException("dialect property is not found!");
} catch (PropertyException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
pageSqlId = p.getProperty("pageSqlId");
if (dialect ==null || dialect.equals("")) {
try {
throw new PropertyException("pageSqlId property is not found!");
} catch (PropertyException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
}
}此插件有两个辅助类:PageInfo,ReflectHelper,你可以下载源代码参考。 写了插件之后，当然需要在 Mybatis 的配置文件 Configuration.xml 里配置这个插件
